Magnetic Stand for Precision Measurements

Accuracy is not just important, it is essential. Engineering, machining, and inspection depend on accuracy. A magnetic stand is a tool that can hold things steady and eliminate some of the error that comes from holding measuring tools. stand hold a dial indicator, test indicator, or other measuring tool to take measurements that need to be consistent and repeatable. Engineers, machinists, and inspectors who rely on close tolerance right angles and measurements need to learn how to effectively use this measuring tool.

What is a Magnetic Stand?

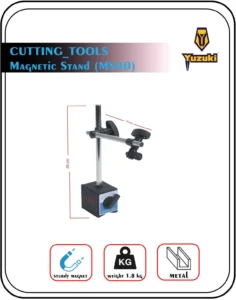

A magnetic stand is a measuring accessory to hold indicators stationary while inspecting or machining the measuring area. A magnetic base is switched on or off, allowing it to attach and hold in place to a metallic surface such as a machine bed, lathe, or a steel table without worrying about it slipping or falling. The stand included an adjustable arm and means of clamping, enabling engineers to reposition their measuring tool at the precise angle and height they are searching for.

A stand is most notably better because it can provide stability without damaging the surface, unlike mechanical clamps. This is very important to achieve accurate readings in any type of industrial environment.

Varieties of Magnetic Base  Stands

There are different designs of stands based on the application. Let’s take a closer look at the ones most commonly utilized:

1. Flexible Magnetic Stand

A flexible stand has a flexible arm that can be angled at multiple positions. It is particularly beneficial when measurements need to occur in awkward spaces or in an unusual angle. All of this adaptability makes the Flexible Magnetic base  Stand a common choice for maintenance engineers and inspectors.

2. Magnetic Base Stand

The Magnetic Base Stand is the standard design that most people are familiar with. It possesses a rigid base with a very simple on and off switch that makes it easy to attach and take off any metal surface quickly. This type is known for having great repeatability and reliability and is seen in machining shops where it is extremely important to measure reproducibly and stable.

3. Universal Magnetic Stand

As its name suggests, a Universal Magnetic Stand is able to cater to use with a broad range of measuring instruments. It allows for maximum flexibility through adjustable joints and arms, and can be used in applications from – research laboratories to heavy duty facilities.

How to Properly Use a Magnetic Stand

To produce the most reliable reading possible, use a stand following these guidelines:

• Select a clean surface.

Always affix the stand to a flat, metallic surface that is clean. Dirt or oil can weaken the magnetic hold and accuracy.

• Turn on the magnetic base.

Turn on the on/off switch. This will cause the magnet to engage, and the stand will be securely attached to the metal surface and will not move during the measurement.

• Attach the measuring tool.

Place the dial indicator or the test indicator into the clamp of the stand and securely tighten so that it does not slip.

• Adjust the arm.

Position the arm of the stand so the indicator’s tip contacts the part. Confirm that the arm is steady and has been locked in place.

• Make the measurement.

With the stand holding the indicator steady, record the measurement. Since the stand eliminates vibration and movement, the measurement will be more accurate.

• Relocate for multiple readings.

When there is more than one reading, loosen the arm, relocate and lock arm. The strong base will ensure that you can recover the same reading in different arrangements.

Possible Uses of a Magnetic Stand

The stand can be a useful tool for a variety of applications:

• Machining & Manufacturing: The stand can facilitate machine alignments and machining of precision components.

• Quality Control & Inspection: The magnetic base  stand provides stable setups for the testing of finished quality components.

• Research & Development: The stand can also help to setup experiments where high precision is needed.

• Educational Institutions: stands used in educational institutions can help demonstrate measurement strategies in engineering laboratories.

The Advantages of a Magnetic Stand

There are many benefits of a stand. These include:

– Precision and Accuracy—Guarantees stability of measuring devices.

– Versatility—Can be used with a range of tools, such as dial indicators and test indicators.

– Usability—Easy setup with an on/off magnetic base.

– Durability—Designed to last in industrial applications.

– Cost Effective—Value is greater than price with precision measuring.

Magnetic Stand Maintenance

In order to assist your stand in lasting longer:

• Keep the base of the stand clean of dust and metal chips.

• Keep the stand in a dry place to prevent rust.

• heck the arm and locking mechanism periodically to make sure they function properly.

• Do not place a magnet where it is exposed to extreme heat, so that it does not become permanently weakened.

If you follow these procedures, a magnetic stand will function in a reliable manner for many years.

Why Engineers Use Magnetic Stands

Every engineer wants to ensure their measurements are accurate. A stand can help with that. This may be because you will use a Flexible Magnetic Stand for some unique set-ups, a Magnetic Base Stand for general daily use around the workshop, or a Universal Magnetic Stand for time with several tools. Whatever the case, a stand is the tool that best matches your engineers’ task. A stand helps with accuracy, saves time, and makes the measurements easier.

Reputable manufacturers, such as JaiBros, provide a large variety of high-quality stands. This includes the Flexible Magnetic Stand, Magnetic Base Stand, and Universal Magnetic Stand, all suitable for the rigorous demands of professional work environments. JaiBros establishes a reputation based on precision tools that engineers can trust time after time.

Conclusion

Precision is the cornerstone of engineering success. A properly used magnetic stand will guarantee an engineer and machinist results that are accurate, repeatable, and professional. Whether a stand is flexible, based, or universal, it is more than just a tool; it is a precision partner.

When you invest in a quality stand, you are investing in accuracy, efficiency, and reliability on every measurement project.

FAQs About Magnetic Stand

Q1. Can a magnetic stand be used with all measuring tools?
A magnetic stand is compatible with most dial indicators, test indicators, and other precision measuring instruments, depending on its clamp design.

Q2. What surfaces can a magnetic stand attach to?
It works best on clean, flat, and ferromagnetic metal surfaces. It won’t hold properly on aluminum, wood, or uneven surfaces.

Q3. Is a flexible magnetic stand better than a rigid one?
A flexible magnetic stand is ideal for hard-to-reach areas, while a rigid or base stand provides maximum stability for standard measurements.

Q4. Do magnetic stands lose their strength over time?
High-quality stands generally maintain strength, but exposure to extreme heat, damage, or poor handling can weaken the magnet.

Q5. What types of magnetic stands are available?

The most common types are Flexible Magnetic Stand, Magnetic Base Stand, and Universal Magnetic Stand, each suited for different tasks.
