Why a Weld Fillet Gauge is Essential for Accurate Welding”
In welding, accuracy is everything. Testing of structural projects, pipelines, and another fabrication job can hinge on if the proper specification of welding has been met. Making sure every single weld meets proper specifications is vital for the integrity of a structure, and each weld will function as noted or could fail. A weld fillet gauge is easily one of the best tools for a welder to confirm the accuracy needed to achieve welding specifications. An inexpensive, easy to use tool that takes the guesswork out of ensuring throat and leg lengths of fillet welds, this tool assures the welder meets specifications and quality standards.
What is a Weld Fillet Gauge?
A weld fillet gauge is a little measuring tool that allows welders, inspectors, and fabricators to assess dimensions of fillet welds. By utilizing this tool, the welder can have confidence the joint won’t be too large or too small, and in turn minimize weak joints, as well as wasteful material. It is generally made out of stainless steel for durability and accuracy.

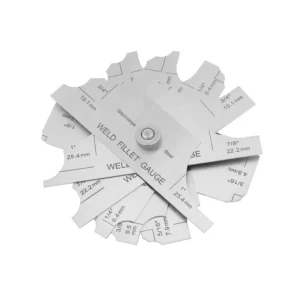

At Jaibros, the Fillet Welding Gauge Set comes with multiple blades ranging from 1/8″ to 1″, adding some flexibility.
Reasons Why Welders Depend on a Fillet Welding Gauge Set
Fillet Welding Gauge Set was built for professional use in industries like shipbuilding, automotive, pipelines, and heavy machinery. The set contains blades engineered with precision that can be pivoted and locked in place to assure precise measurements. When you have this in your toolbag, taking measurements and checking welds are quick and reliable and save a lot of time and hassle when on-site.
Weld Fillet Gauge Use in Everyday Welding Duties
If you want the best chances of getting a perfect weld, it is important to understand how to use the weld fillet.
Professional welders use this gauge not just for code compliance, but they use it as a learning tool to improve their skills and develop consistency in weld sizes.
Weld Fillet Gauge Specification
When you are in the market for a measuring tool, a clear idea of the weld fillet gauge specification is essential.
The Jaibros weld fillet gauge consists of the following specifications:
- Material: Stainless steel for lasting durability
- Size Range: 1/8″ to 1″ in 7 different blades in one package
- Design: Portable and pocket-able design
- Accuracy: Precision engineered and reliable
- Use Case: Workshop, field inspection, and industrial welding projects
The above features make it a versatile option for both the novice and the experienced welder, particularly when accuracy is demanded in each weld.
Reasons to Choose Jaibros Weld Fillet Gauge
Jaibros guarantees that all products meet quality standards around the world. The Jaibros weld fillet gauge has durability, ease-of-use, and accuracy, which is the reason that it has earned the trust of the industries. The body is made of stainless steel to resist corrosion and serve reliably even in adverse conditions.
When you invest in a reliable gauge, it means you are purchasing a tool, and you are investing in the welding standards, safety, and consistency of projects.
FAQs
- What does a weld fillet gauge do?
A weld fillet gauge measures a fillet weld’s throat and leg dimensions to confirm the weld meets specifications and quality requirements.
- How do I use it?
To use it, place the proper blade of the gauge against the weld. This will allow you to confirm the size of the weld meets the size specified.
- Can it measure more than one weld size?
Yes, with the Fillet Welding Gauge Set, there are several blades in one set that will allow you to measure many sizes of weld with one gauge.
- Why are gauge specifications important?
Specifications give details about the accuracy, size range, and construct of the gauge. Using a gauge without specifications will lead to inconsistency in weld inspections.
- Who uses a weld fillet gauge?
A weld fillet gauge is suited for welders, supervisors, and quality inspectors who work in shipbuilding, construction, automotive, or oil & gas industries, where welding operations are critical to the outcomes.
Conclusion
Enhancing your welding for continued high-quality learning begins with using the proper tools. A weld fillet gauge is intended to assist you in the welding process by ensuring your weld is precise, effective, and meets the expected level of quality. The Jaibros Fillet Welding Gauge Set gives welders an educationally sound, reliable, durable, and size-appropriate option that helps inspectors gain confidence with their welds. If you take the time to be educated on the use of weld fillet gauges and understand the standards that govern the weld fillet gauges you use, there is no reason you can’t expand your welding applications with precisely and in reliability.
