A reliable water distribution system is essential for ensuring consistent water flow, pressure control, and long-term sustainability. Among the many components that form the backbone of an effective water infrastructure, the Non-Rising Stem (NRS) gate valve plays a critical role. This article explores how to build a strong water system using NRS gate valves, discussing their structure, functionality, applications, and best practices for installation and maintenance.
Understanding the Role of NRS Gate Valves

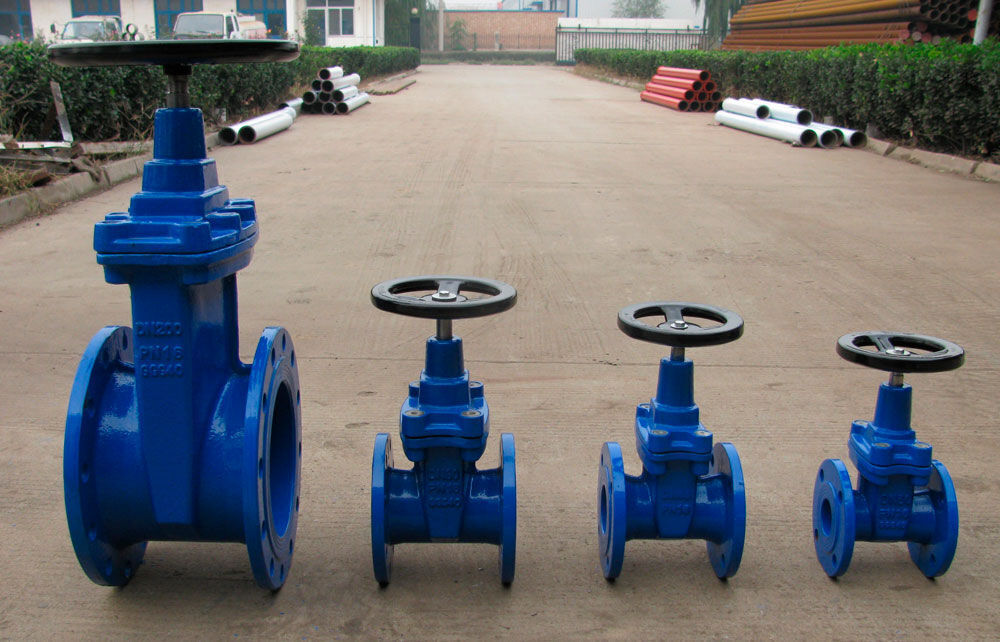

Non-Rising Stem (NRS) gate valves are a specific type of valve used primarily in underground water pipelines where vertical space is limited. Unlike rising stem valves, the stem of an NRS valve remains stationary as the gate inside the valve moves up and down to control the flow of water.
These valves are commonly used in water distribution systems due to their compact design and ability to operate efficiently in constrained environments. Their design allows for the stem threads to be protected from external damage and corrosion, making them ideal for buried service applications.
NOTE:- System pressure and water flow were controlled using an NRS gate valve designed for underground utility projects. Its non-exposed stem helped avoid mechanical damage. For industry-approved installations, Sensor Techuae should be contacted for prompt assistance and supply.
Key Features of NRS Gate Valves
NRS gate valves offer a number of features that make them indispensable for water systems:
- Compact Design: Ideal for installation in tight or underground spaces.
- Corrosion Resistance: Internally threaded stems are protected from external elements.
- Durability: Made from ductile iron or cast iron, these valves can withstand harsh conditions.
- Bubble-tight Sealing: Ensures zero leakage when fully closed.
- Low Maintenance Requirements: Designed for longevity with minimal intervention.
Why NRS Valves Are Essential for Strong Water Systems
Enhanced Control Over Water Flow
NRS gate valves offer precise control over the flow of water. This makes them suitable for main distribution lines, branch lines, and connections to service pipes. Their ability to isolate parts of the water system enables maintenance or repairs without interrupting the entire supply network.
Space Optimization
In many urban and industrial environments, space for valve installation is limited. The compact profile of NRS valves ensures they can be installed in confined spaces without affecting operational efficiency.
Durability in Harsh Environments
NRS valves are often made from corrosion-resistant materials, making them ideal for underground and outdoor applications. Their durability helps in building a water system that requires fewer replacements and repairs over time.
Designing a Water System with NRS Valves
To create a strong water system using NRS valves, a structured and strategic approach must be followed:
Assessing System Requirements
Before selecting components, assess the specific requirements of the water system. Consider factors like:
- Type of application (residential, industrial, municipal)
- Water pressure and flow rate
- Pipe diameters and material compatibility
- System layout and elevation changes
This evaluation helps in determining the appropriate valve sizes and installation points.
Valve Sizing and Selection
Choosing the correct size of the NRS valve is crucial. Undersized valves can cause pressure drops and flow restrictions, while oversized valves may lead to control inefficiencies.
Work with manufacturers or consult engineering tables to select the optimal valve size based on your calculated flow rate and pipe dimensions.
Strategic Placement of Valves
Valves should be placed at critical junctions within the water system. These typically include:
- Entry and exit points
- Branch line connections
- System high and low points
- Zones requiring isolation for maintenance
Proper placement enhances system control, helps in leak detection, and facilitates easier repairs.
Integration with Other System Components
NRS valves must be compatible with other elements in the system, such as backflow preventers, meters, and pressure-reducing valves. Proper integration ensures overall system harmony and reduces the risk of operational issues.
Installation Best Practices for NRS Valves
Site Preparation
Ensure the site is clear of debris and that the trench is dug according to specifications. Proper bedding and backfilling materials should be used to avoid mechanical stress on the valve body.
Valve Orientation
Install the valve in the correct orientation with the stem positioned for easy access to the operating nut. This is critical for buried installations where manual operation may be needed during emergencies.
Bolt Torque and Gasket Alignment
When connecting valves to pipelines, use the correct torque specifications and ensure gaskets are properly aligned. This minimizes the chances of leakage and mechanical failure.
Post-Installation Testing
Once the valve is installed, conduct pressure and leakage tests to confirm integrity. Also, cycle the valve open and closed several times to ensure smooth operation.
Maintenance and Troubleshooting
Routine Inspection
Regular inspections are essential to identify issues such as corrosion, wear, or improper sealing. Inspections should include visual checks and manual operation.
Lubrication and Cleaning
While NRS valves are low-maintenance, periodic lubrication of accessible parts and cleaning of the valve box or stem cap can prolong life and ensure smooth operation.
Common Issues and Solutions
- Stiff Operation: May indicate dirt or corrosion; clean and lubricate the operating parts.
- Leaking: Check gasket alignment and torque; replace if necessary.
- Valve Won’t Close Fully: Foreign matter may be obstructing the gate; disassemble and inspect.
Compliance and Quality Standards
When sourcing NRS gate valves, ensure they meet relevant industry standards such as:
- AWWA C509/C515: For resilient seated gate valves.
- ISO 9001: For quality management systems.
- NSF/ANSI 61: For drinking water system components.
Valves that meet these certifications guarantee safety, reliability, and compatibility with public water systems.
Conclusion
Building a strong and efficient water system requires a thoughtful approach to component selection, design, and maintenance. NRS gate valves offer unmatched advantages in terms of durability, compactness, and control. By understanding their functionality and following best practices in design and installation, engineers and contractors can significantly enhance the reliability and longevity of water distribution networks.
Whether for residential developments, industrial facilities, or municipal infrastructure, integrating NRS gate valves into your water system is a smart investment toward operational excellence and long-term performance.
